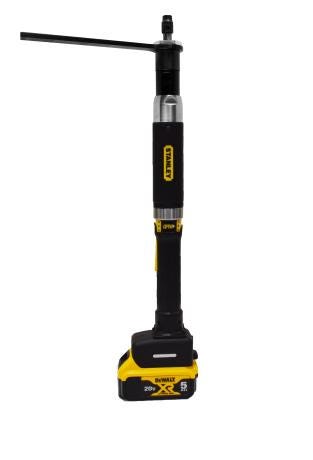

B23LB-40 B Series Wireless Transducerized Nutrunner

Product description :

B23LB-40 Lever Start DeWalt 18V / 20V Max Platform Nutrunner With The Following Features: - Rated For 4 - 40 NM With A Recomended Working Range Of 8 - 32 NM - 25-241 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 18V / 20V Max Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeStraight

Recommended Working Range8 - 32 NM

Useful Tool Range4 - 40 NM

Max Torque40.0

Min Speed (RPM)25.0

Max Speed (RPM)241.0
